Excel TEXTSPLIT Function: Exploring a Hidden Gem for Mastery, Pro Tips, and Beyond!

Excel TEXTSPLIT Function

When to Use the Excel TEXTSPLIT Function in Excel

The Excel TEXTSPLIT function is a versatile tool designed to simplify the process of breaking down text strings into multiple components, utilizing designated column and row delimiters.

This function proves invaluable in scenarios where you need to parse and extract structured data from a single string. Here is when you should consider using the Excel TEXTSPLIT function:

Complex Text Parsing: When you encounter text strings with varying delimiters, multiple delimiters within the same cell, or a mix of columns and rows in your data, Excel TEXTSPLIT function provides a robust solution.

Data Cleanup: In cases where you need to clean and organize data, TEXTSPLIT can help you split and arrange it neatly into separate columns and rows.

Structured Data Extraction: When you have a text string containing structured data, such as names, addresses, or other delimited information, and you need to extract or split specific components from it.

What Excel TEXTSPLIT Function Returns

The Excel TEXTSPLIT function delivers a powerful outcome – it returns an array of substrings obtained by splitting a text string based on the specified column and row delimiters. Each element within the resulting array corresponds to a part of the original text, effectively segmenting your data for further analysis or manipulation.

Syntax of Excel TEXTSPLIT Function

Understanding the syntax of the Excel TEXTSPLIT function is crucial for its effective utilization. Here is the precise syntax:

=TEXTSPLIT(text, col_delimiter, [row_delimiter], [ignore_empty], [match_mode], [pad_with])

Input Arguments

Let’s delve into the input arguments for the Excel TEXTSPLIT function:

👉 text (required): This argument signifies the original text that you intend to split. You can provide it either as a direct string or a reference to a cell containing the text.

👉 col_delimiter (required): col_delimiter represents the character or substring that marks the column boundaries for splitting the text. It acts as the separator for your data.

👉 row_delimiter (optional): If you require splitting the text into both columns and rows, you can specify the row_delimiter. This parameter defines the row boundaries. If omitted, the function will solely split the text into columns.

👉 ignore_empty (optional): This parameter dictates whether empty elements should be included in the result. Setting it to TRUE (the default) excludes empty elements, while setting it to FALSE includes them.

👉 match_mode (optional): Match_mode determines whether the delimiters’ case sensitivity should be considered during the split. By default, it is enabled and operates in a case-sensitive manner. You can set it to 1 for case-insensitive splitting.

👉 pad_with (optional): When row_delimiter is specified, pad_with determines how Excel handles uneven rows in the result. If set to an empty string (the default), uneven rows are omitted. Any other value will pad the shorter rows with that specified value.

Extra Notes

👉 Excel TEXTSPLIT function is exclusively accessible in Microsoft 365’s Excel and Excel for the web. To learn more about how to use Excel for Web for free. Watch 👇 this video

👉 This function is highly valuable for tasks such as handling CSV files, extracting specific elements from text, and splitting text into rows and columns.

👉 Either col_delimiter or row_delimiter is optional when the other is present, providing flexibility in how you use TEXTSPLIT.

👉 It is important to note that TEXTSPLIT generates a spilled array, so all destination cells where results are to be placed must be empty; otherwise, Excel will produce a #SPILL! error.

👉 Excel TEXTSPLIT function offers a dynamic and efficient way to split text into columns or rows using a designated delimiter, surpassing the functionality of the standard Text to Columns command in Excel

Common Mistakes to Avoid

To ensure smooth usage of the Excel TEXTSPLIT function, watch out for these common mistakes:

👉 Incorrect Delimiters: Ensure that you specify the correct column and row delimiters for your data. Using the wrong delimiters can lead to unexpected results.

👉 Neglecting Empty Elements: If your text contains consecutive delimiters, remember to consider the ignore_empty parameter. Its settings can significantly affect the outcome of your function.

👉 Misaligned Padding: When utilizing the row_delimiter and pad_with parameters, make sure they align with your data structure. Mismatched padding can create inconsistencies in your results.

Tips For Optimal Usage

To make the most of the Excel TEXTSPLIT function, keep these tips in mind:

👉 Utilize Cell References: Instead of hardcoding the text and delimiters, use cell references. This approach enhances the flexibility of your formulas and allows you to change inputs easily.

👉 Combine with Other Functions: TEXTSPLIT pairs effectively with various other Excel functions, enabling you to perform complex text parsing tasks. Experiment with combinations to achieve specific outcomes.

👉 Test with Diverse Scenarios: Try different delimiters, match modes, and padding options to ensure that your function handles various data scenarios correctly. Thorough testing enhances the reliability of your results.

Examples of the Excel TEXTSPLIT Function

Let’s dive into some practical examples to illustrate how to use the TEXTSPLIT function effectively:

Example 1: Basic Usage

Split a cell horizontally into a separate columns

Suppose you have a name in Cell A1, and you want to splits the name into separate column based on the comma (“,”) delimiter. You can use the following formula:

Refer to the example above. To split the name into separate columns, we simply used col_delimiter (second argument).

Split a cell vertically into a separate rows

Suppose you have a name in Cell A1, and you want to splits the name into separate row based on the comma delimiter. You can use the following formula:

To split the name into separate rows, we utilized the third argument, row_delimiter, while omitting the second argument.

Example 2: Split a text string into both columns and rows

Let’s take it up a notch and split a text string into both columns and rows simultaneously. In your TEXTSPLIT formula, simply define both delimiters (col_delimiter and row_delimiter)

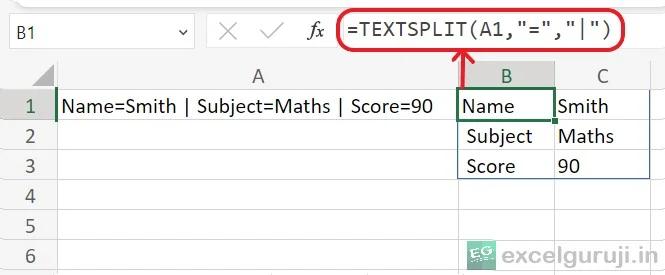

Refer to the example above. Excel TEXTSPLIT function, split a text string located in cell A1 into separate elements based on two delimiters: “=” and “|”

“=” is used as the col_delimiter. This means the formula splits the text string whenever it encounters an equal sign (=) in the text.

“|” is used as the row_delimiter. This delimiter specifies that the formula should create a new element whenever it finds a vertical bar (|) in the text.

Example 3: Splitting Cells Using Multiple Delimiters

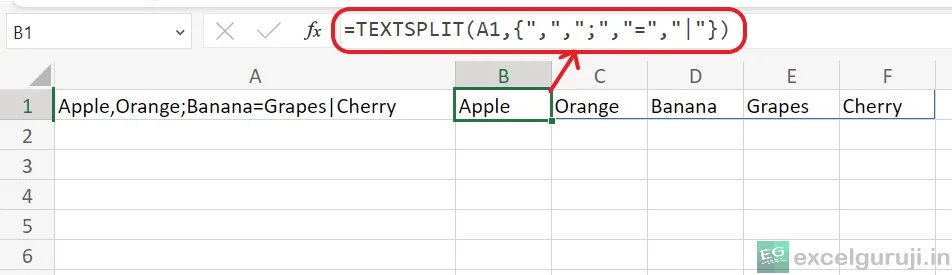

Suppose you have multiple delimiters and you want to split the text into columns, then use the following formula:

{“,”,”;”,”=”,”|”} is an array containing multiple delimiters. This array specifies that the formula should split the text string whenever it encounters any of the delimiters listed within the curly braces.

Example 4: Handling Empty Values in Text Split

When your text string contains consecutive delimiters without any values in between, you have the option to decide whether to consider or ignore these empty values. This behavior is determined by the fourth parameter, ignore_empty in the TEXTSPLIT function, which is set to FALSE by default.

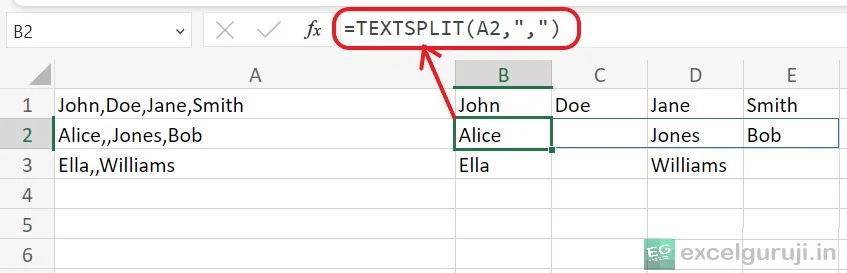

By default, TEXTSPLIT does not skip empty values, as illustrated in the example below.

In the above example, as you can see, the formula displays an empty cell for missing values.

If your strings consist of consistent data, it might make sense to disregard these empty values. To achieve this, you can set the ignore_empty argument to TRUE or 1.

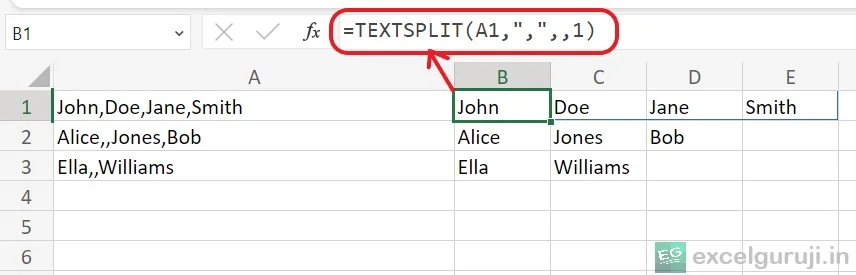

For example, if you want to split the following strings and place each skill into separate cells without any gaps, you can use the following formula:

Example 5: Case-Insensitive Splitting

By default, match_mode is configured as 0, resulting in TEXTSPLIT being case-sensitive.

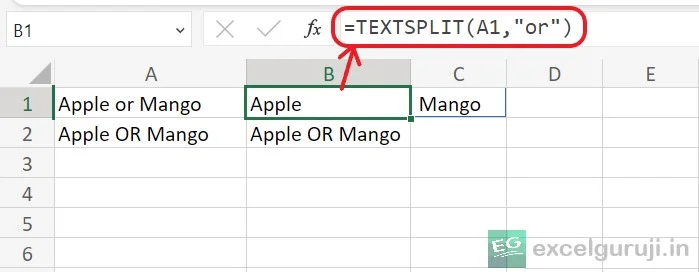

In this illustration below, the fruit name are divided by both lowercase “or” and uppercase “OR”.

When using the default case-sensitive setting, the formula exclusively recognizes the lowercase “or” as the delimiter.

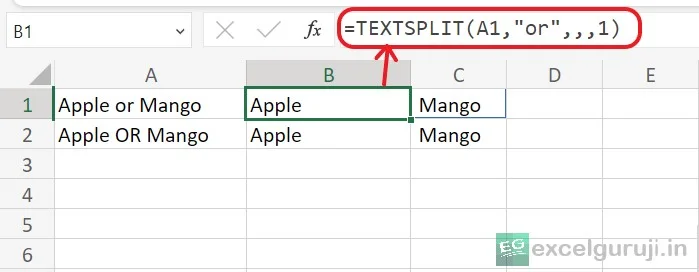

To disable case sensitivity, you can set match_mode to 1, instructing the TEXTSPLIT formula to disregard letter case

With this adjustment, the formula will correctly split all the strings.

Example 6: Padding Rows

The final parameter in the Excel TEXTSPLIT function, known as pad_with, serves a useful purpose when dealing with scenarios where one or more values are absent within the source string.

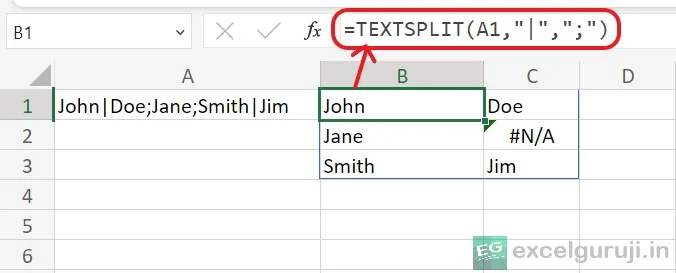

When this kind of string is split into both columns and rows, Excel, by default, generates #N/A errors in place of the missing values. This is done to maintain the structure of a two-dimensional array without altering it.

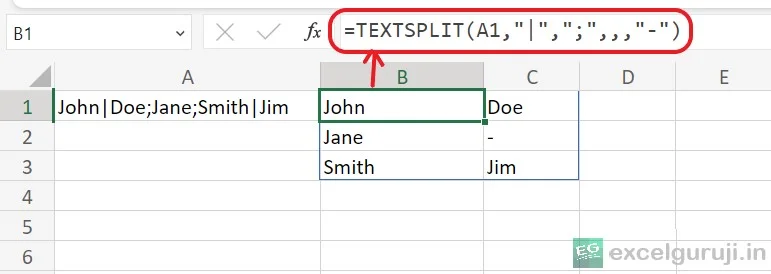

To enhance the user-friendliness of the outcome, you have the flexibility to substitute the #N/A error with a value of your choosing. All you need to do is input your preferred value into the pad_with argument.

Don’t Just Read About It – Do It! Excel TEXTSPLIT Practice Awaits.

Now it is time for some hands-on practice with the Excel TEXTSPLIT function. I have embedded the Excel file below for you to explore and experiment with. This file contains sample data, and I have already set up a few TEXTSPLIT formulas to get you started.

If you have questions or insights, share them in the comments. Happy practicing!

Conclusion

The Excel TEXTSPLIT function stands as a powerful solution for splitting text strings into structured data with ease. Its flexibility, enabled through a range of input arguments, empowers users to efficiently manage and manipulate their data.

To truly master the Excel TEXTSPLIT function, practice and experimentation are essential. Apply it across various projects, explore diverse use cases, and watch your Excel proficiency reach new heights.

Frequently Asked Questions (FAQs)

Q1: Can the TEXTSPLIT function handle multiple occurrences of column and row delimiters in a text string?

A1: Yes, the Excel TEXTSPLIT function can adeptly manage multiple occurrences of both column and row delimiters within a text string. It will accurately split the text based on the specified delimiters, creating a structured result.

Q2: Can I use cell references as delimiters in the TEXTSPLIT function?

A2: The TEXTSPLIT function requires constant delimiters. However, you can certainly use cell references to store delimiter values and then reference those cells in your formula. This approach enables you to change delimiters easily without modifying the formula itself.

Q3: How does the TEXTSPLIT function handle empty elements in the result?

A3: The handling of empty elements hinges on the ignore_empty parameter. If set to TRUE (the default), empty elements are excluded from the result. When set to FALSE, they are included in the result array. This flexibility allows you to tailor the outcome to your specific needs.

Q4: Is TEXTSPLIT case-sensitive when splitting text?

A4: By default, TEXTSPLIT is case-sensitive. However, you can make it case-insensitive by setting the match_mode parameter to 1 or TRUE.

Q5: Can TEXTSPLIT be used with non-text data types, like numbers or dates?

A5: Yes, TEXTSPLIT can be used with various data types, not just text. It can efficiently split numbers, dates, and other types of data into separate elements.

Q6: Is TEXTSPLIT available in all versions of Excel?

A6: TEXTSPLIT is available in Microsoft 365‘s Excel and Excel for the web. It may not be available in older versions of Excel, so ensure you are using a supported version.
